Site Investigation

Site investigations assist to identify hazards at brownfield sites to aid reclamation. Investigations also assist engineers to assess physical conditions at sites of proposed construction for roads, bridges and buildings.

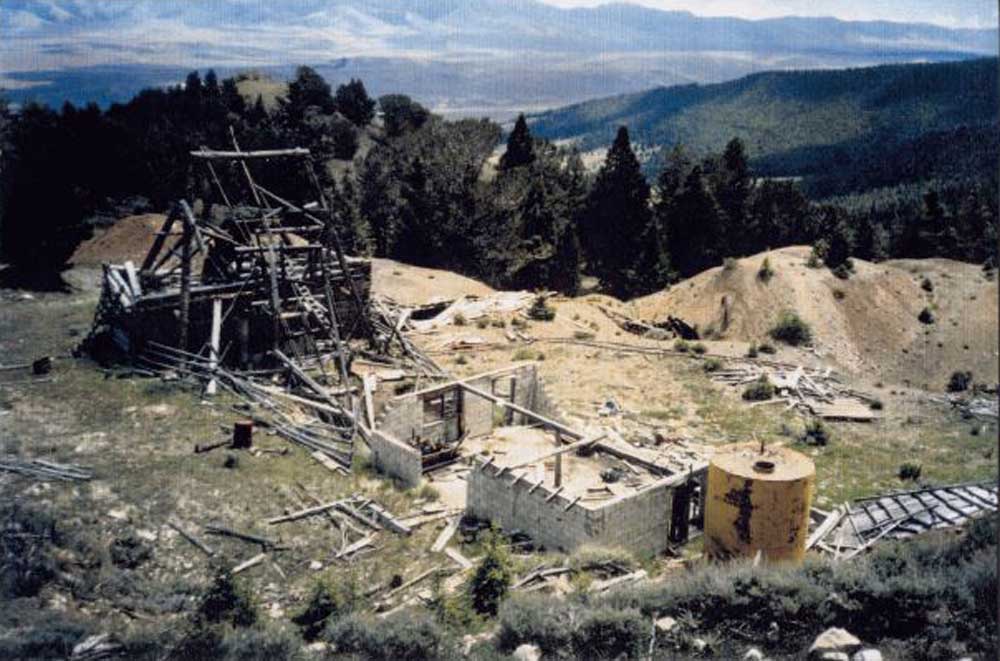

Abandoned Mine Sites

    Conduct historical research, surface & underground mapping, environmental sampling & analysis of contaminated waste rock, tailings, & soils, and prepare site investigation report for selected:
  • Mines & Waste Rock Dumps
  • Mill Sites & Tailings
  • Mining & Processing-Related Facilities


Mine Closure Investigation

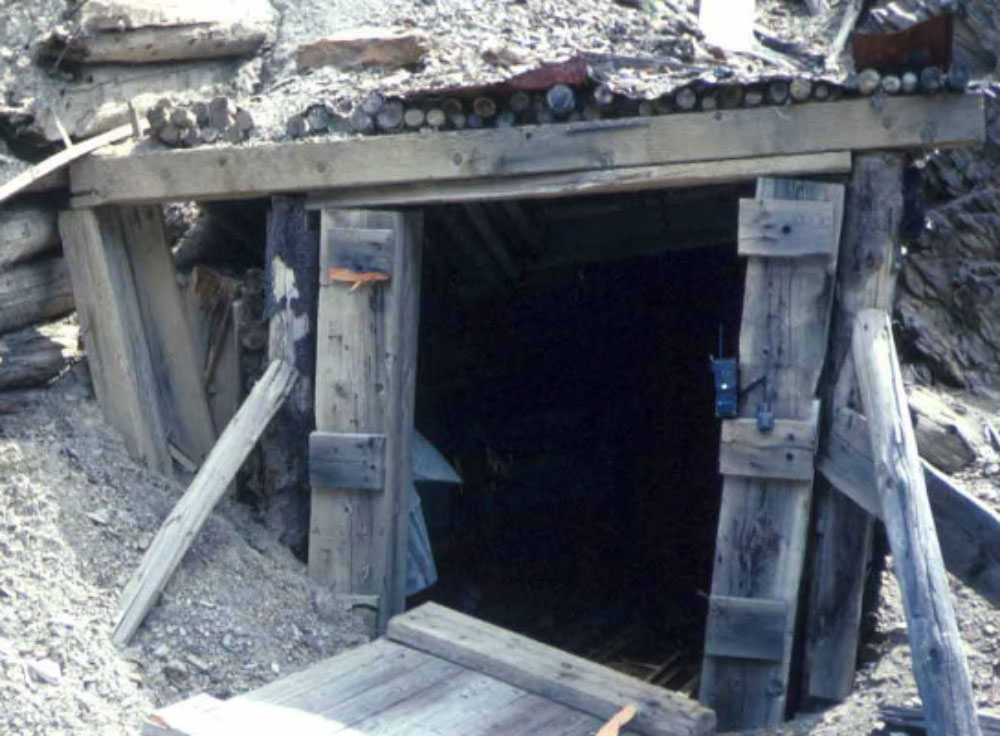

Evaluate mine adit portals & shaft collars to determine suitability for closure to reduce public hazard; includes site research, selected surface & underground mapping, examination & assessment of portal/collar rock condition, and preparation of site investigation reports for selected mine sites.

Other Waste Sites

    Conduct site history research, surface mapping, delineation of waste site by surface reconnaissance and application of suitable geophysical methods, selected sampling & analysis of suspected waste materials, and prepare site investigation report for selected
  • Landfills
  • Suspected Waste Disposal Sites

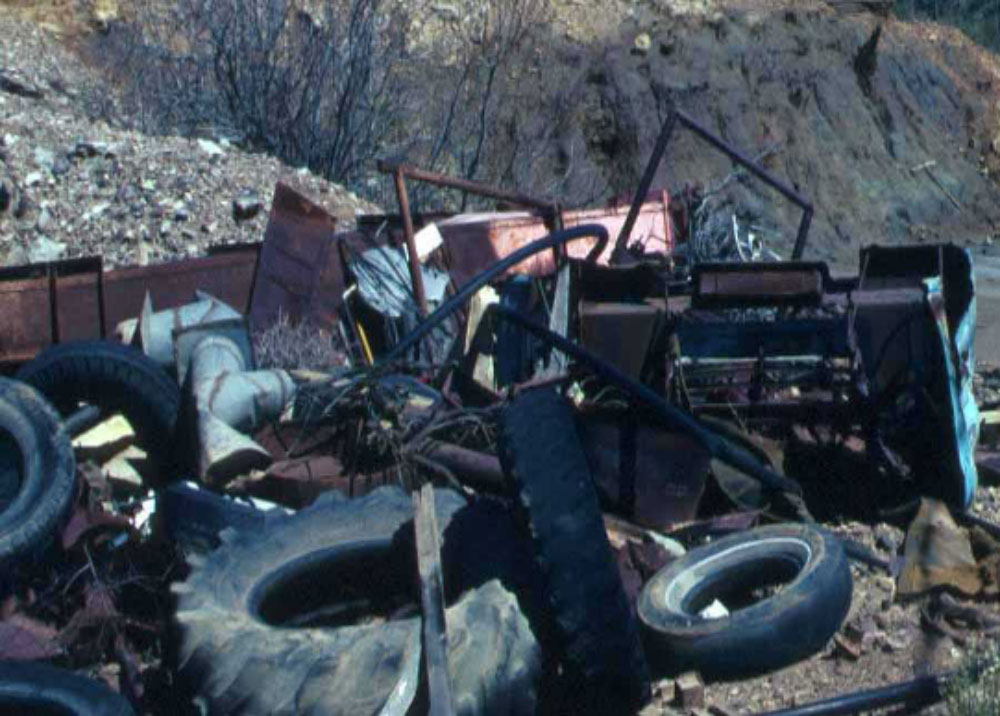

  • Bone Yards


Engineering Site Investigation (Characterization)

Seismic technologies have made great strides recently. Advances in computer processing, and understanding of p-wave, s-wave, and surface wave propagation have greatly expanded the knowledge, ability, and speed to assess the subsurface environment. Refraction surveys using p-wave energy is a well known method in assessment of rock hardness (rock strength), rippability, and subsurface mapping.

MASW In 1-D
    More recent understanding of surface waves and development of multi-channel analysis of surface waves (MASW) technology place seismic methods at the fore-front as a subsurface mapping and engineering site assessment tool. Shear wave (Vs) velocity determination using MASW is one of three methods used to determine soil strength for the upper 30 m (100 ft) for foundation engineering site characterization. Other applications:
  • Assess foundation sites using Vs to meet building codes (IBC, UBC) in earthquake-prone areas,
  • Determine suitability of sites for bridge or highway foundations; and effect of sand compaction,
  • Locate sinkholes, underground mines, caverns, and caves, and
  • Assess wind energy or tower site foundations

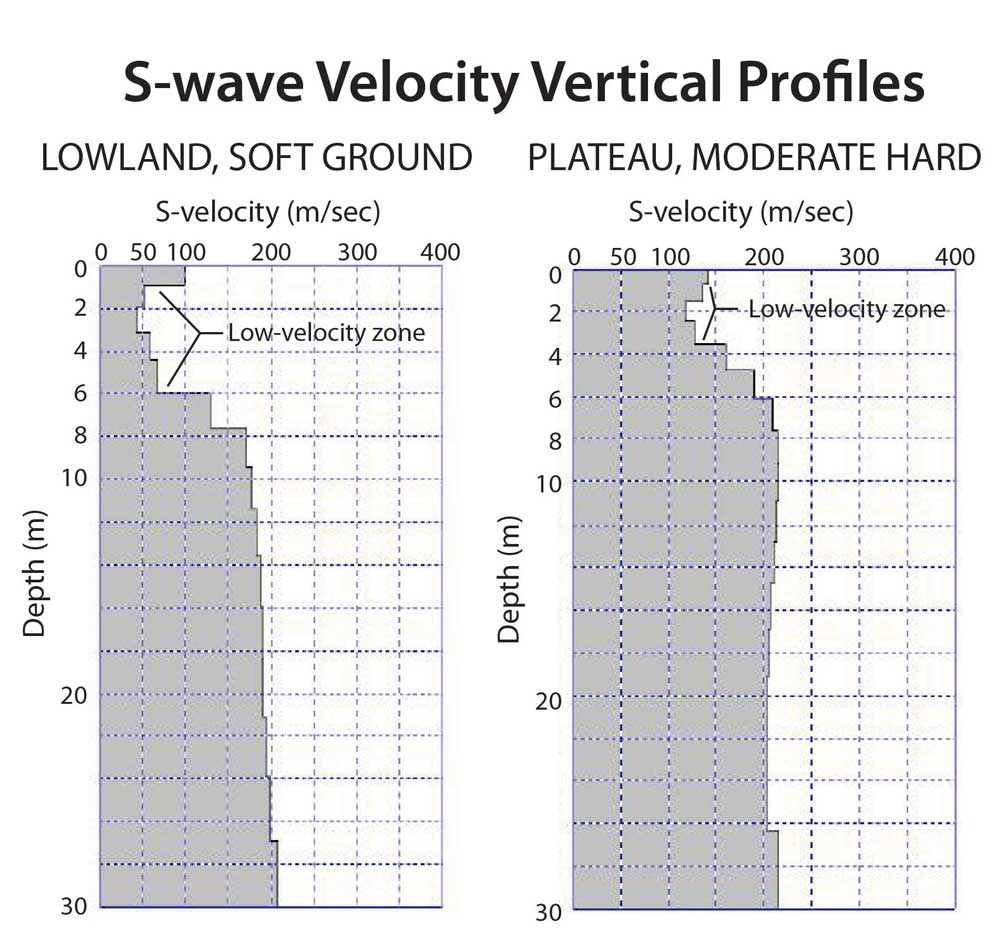

    Example 1-Two profiles for a vertical site report of shear wave [Vs] velocities to 100 feet depth from MASW data (illustration).
  • Inexpensive substitute for ground penetrometer
  • Strength data for foundation and pier design
  • Detect hidden “low velocity” zones not detected using seismic refraction
  • Detect weak zones, caves, voids
  • 1-D site or 2-D, 3-D profiling modes


2-D Profiling With MASW
MASW seismic surveys are performed in a profile mode when several points are recorded in succession and later combined. Points may be along a straight or curved line, or crossing flat or difficult topography to investigate soil strength of engineering or wind energy sites, locate sinkholes, or assess building or road foundations. Surveys can be conducted within existing buildings. (Example 2

Engineering Site Investigations (Rip Instead of Drill and Blast)


Rather than bringing in drilling equipment and a blasting crew to loosen difficult overburden, operators are often finding that tractor ripping is more economical and practical.
The Drill & Blast versus Rip decision can be made with aid of a seismic study using portable equipment and crew of two. This study involves minimal time, depending on a project scope, perhaps one field day for a small project. The seismic procedure involves use of seismic refraction gear.

Ripping Handbook

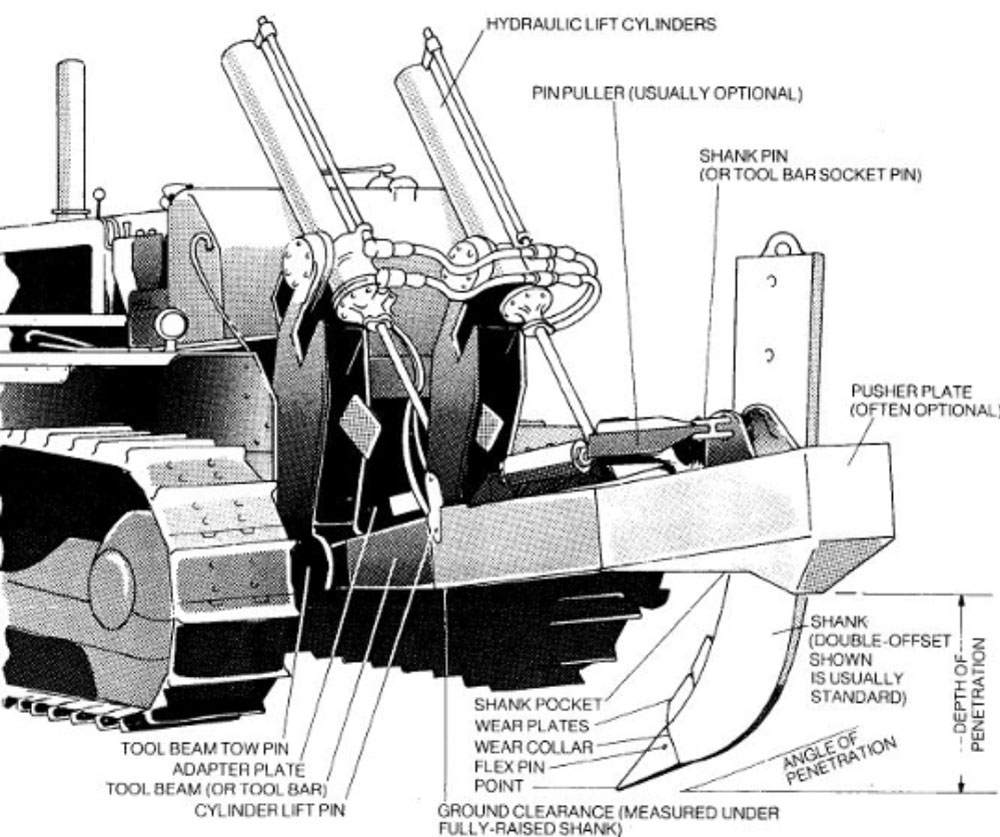

Caterpillar has produced a “Handbook of Ripping” that details the ability of its crawlers equipped with ripping gear to penetrate rock. This performance handbook used in conjunction with newly acquired seismic information can be a big time savings and avoid a larger expense of drilling and blasting.

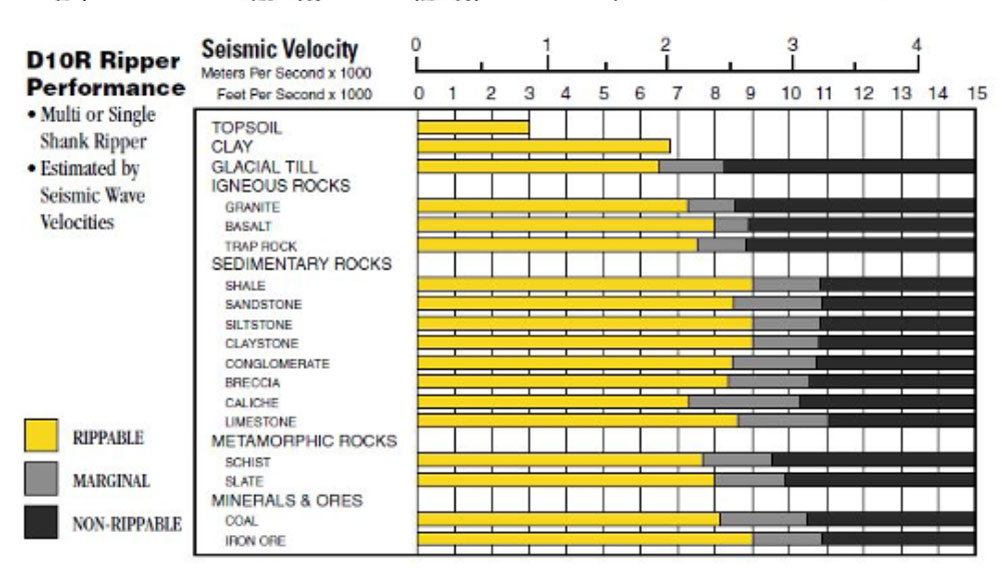

The D10 ripper performance can be estimated from the seismic results. The seismic results provide information about rock velocity, a measure of bulk density. The D10 tractor can rip overburden if seismic velocities are less than 7,000 feet per second (bulk density=2.18 g/cc) with relative ease or 9,000 feet per second (bulk density = 2.32 g/cc), depending on site conditions. (Caterpillar Handbook)
Seismic Results

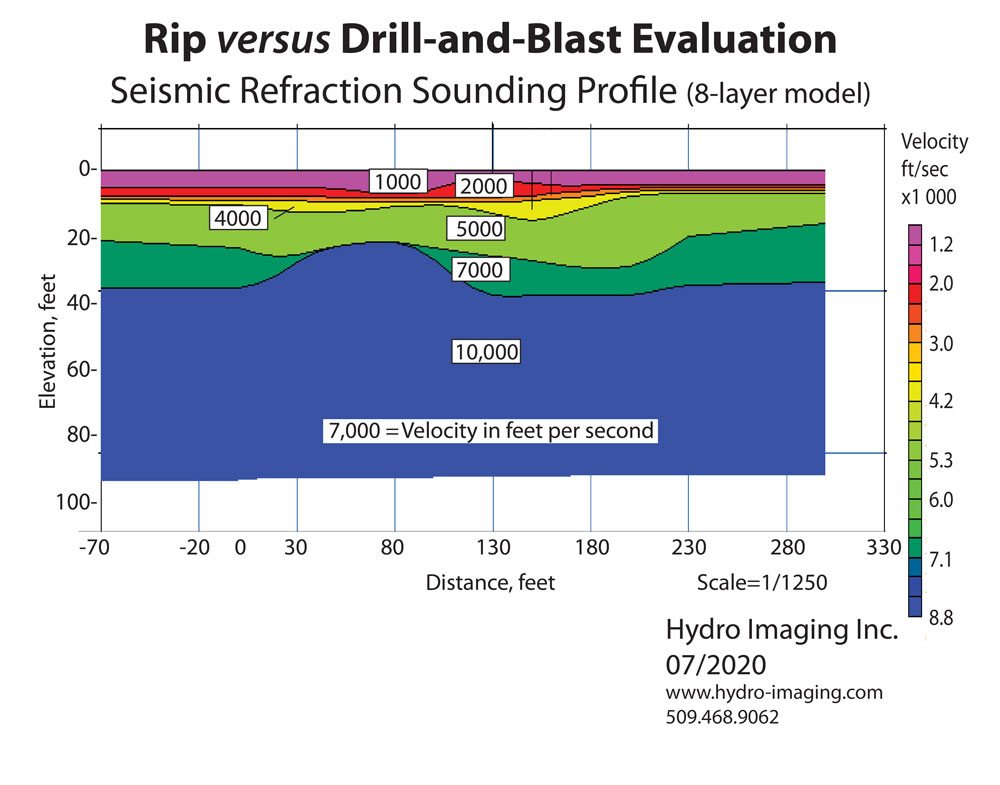

Seismic results from this evaluation shows changing velocity (or travel time) of sound through bedrock consisting of granite. Results show velocity of various rock units in feet per second (purple through blue). It shows that the granite at this site can be ripped using a D10 tractor equipped with ripper where rock velocity is 7,000 feet per second or less, corresponding to the green layers or shallower layers. This means that the maximum rippable depth is 37 feet. The rock units appear to granite having been subjected to varying degrees of weathering until hard bedrock is reached at 37 feet.
